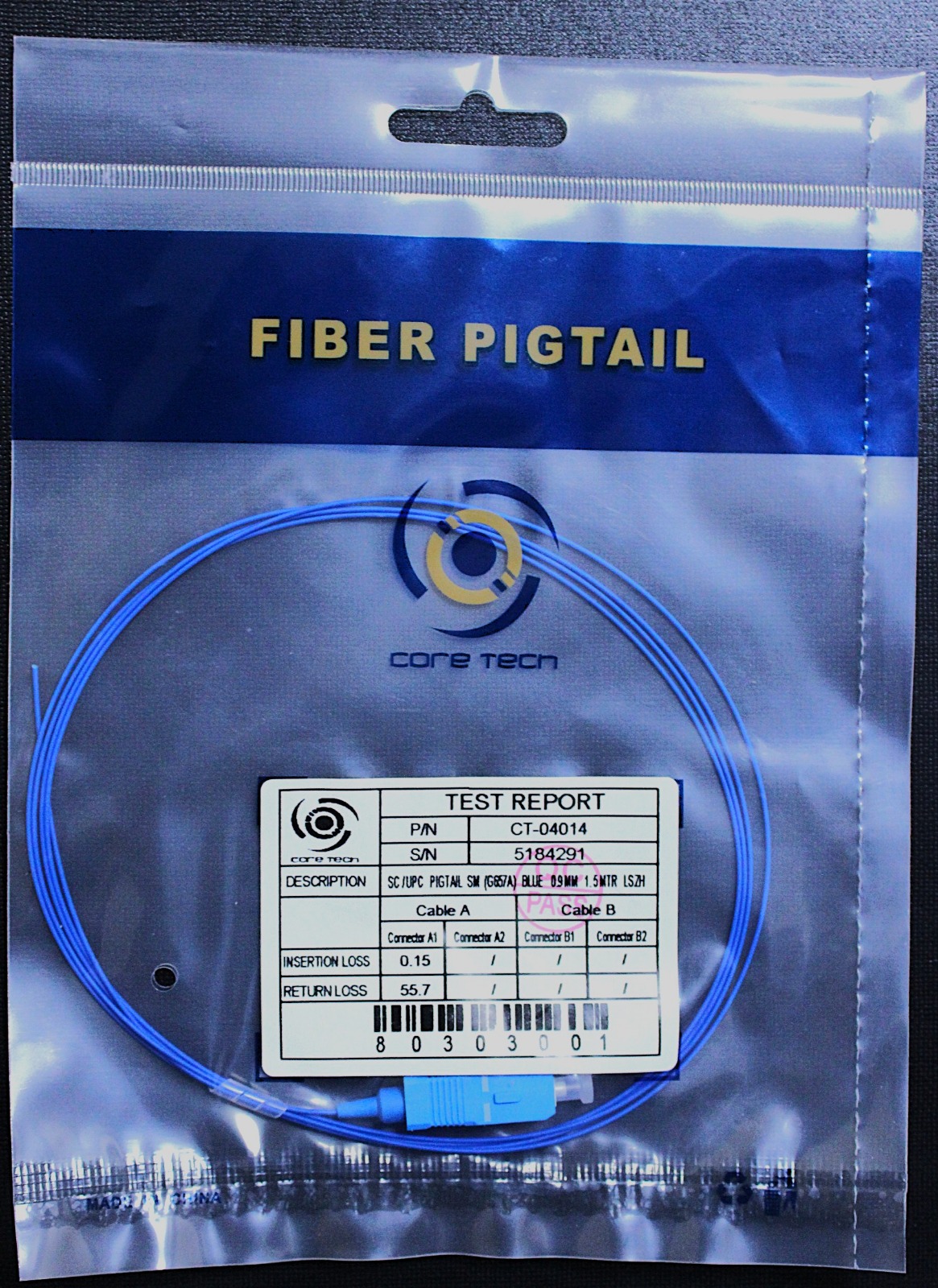

SC/UPC PIGTAIL SM(G657A) BLUE 0.9MM 1.5MTR LSZH CT-04014

C/UPC Pigtail SM(G657A) Blue 0.9mm 1.5Mtr LSZH CT-04014 is a single-mode fiber optic cable assembly with a factory-terminated connector on one end and bare fiber on the other, designed for permanent fusion splicing in network distribution frames. Optical & Connector Specifications Connector Type: Features an SC (Subscriber Connector) with a UPC (Ultra Physical Contact) blue-colored end-face. According to Huamai, UPC connectors provide low insertion loss and high return loss, typically 50dB to 55dB. Fiber Type: Uses G657A Single-Mode fiber (9/125 m core/cladding). As noted by HFCL, this is a bend-insensitive (BI) fiber, which maintains performance even with small bending radii (10mm for G657A1), making it ideal for tight spaces in FTTH deployments. Performance: Typically rated for insertion loss 0.2dB or 0.15dB depending on the manufacturer, such as the standards listed by Briticom. Physical Construction Cable Diameter: 0.9mm, which is a tight-buffered fiber. This thin profile is standard for pigtails intended to be coiled inside splice trays or terminal boxes. Length: 1.5 Meters, providing sufficient slack for routing and multiple fusion splicing attempts. Jacket Material: LSZH (Low Smoke Zero Halogen). According to Wikipedia, this material classification is used to ensure that if the cable is exposed to fire, it emits limited smoke and no toxic halogen gases. Color: Blue, which corresponds to the first fiber in standard 12-color TIA/EIA-598-C color-coding schemes.

SAR 5.25

SKU: GS2602000032
