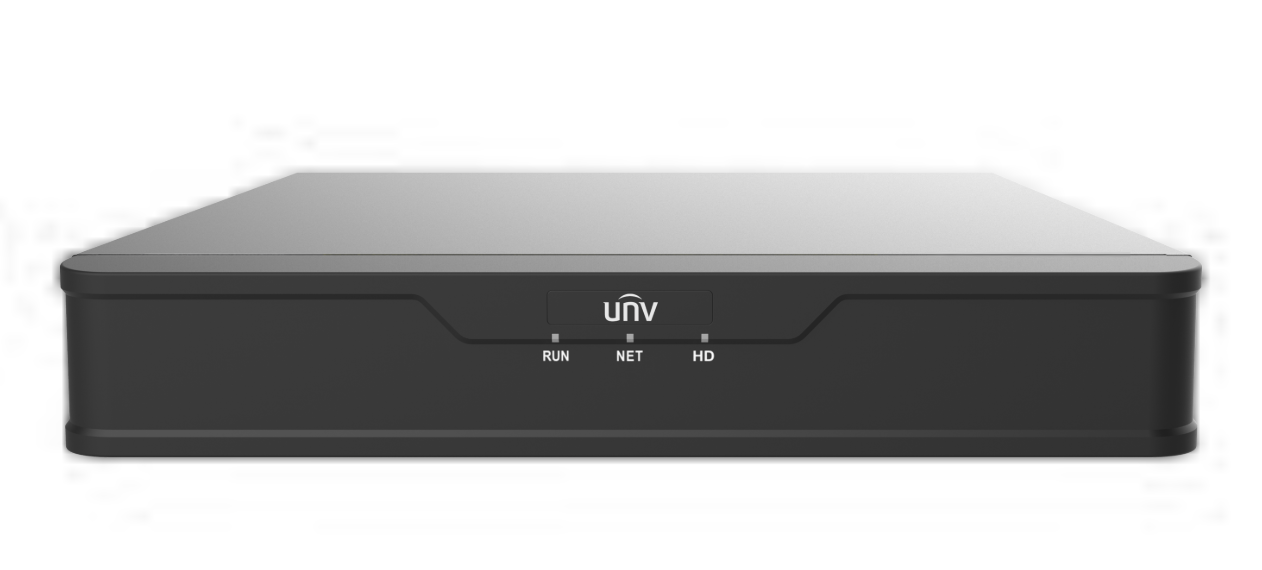

NVR301-04S3-P4 - UNV 4-Ch 4K NVR, 1HDD, 4PoE Network Video Recorder جهاز تسجيل  - Uniview

Key Features Supports video compression formats: Ultra265, H.265, H.264 Uniview +2 surveillance-video.com +2 4 IP camera input channels (4-ch) surveillance-video.com +2 Uniview +2 Comes with 4 independent PoE ports for powering PoE cameras directly from the NVR Uniview +2 surveillance-video.com +2 Simultaneous HDMI + VGA outputs Uniview +2 surveillance-video.com +2 HDMI output supports up to 4K (3840×2160) @30Hz Uniview +2 download.discomp.cz +2 Video / Decoding / Recordings Recording resolution supports: 4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF Network Camera Store +3 download.discomp.cz +3 surveillance-video.com +3 Decoding capability for this model (live view / playback) includes: • 1 channel at 4K @ 30fps • 4 channels at 5MP @ ~25fps • 4 channels at 4MP @ ~25fps • 4 channels at 3MP @ ~25fps Uniview +1 Incoming bandwidth: 64 Mbps Uniview +2 dwg.us +2 Outgoing bandwidth: 48 Mbps Uniview +1 Storage & HDD Has 1 SATA interface for one HDD Uniview +2 download.discomp.cz +2 Maximum HDD capacity: up to 6 TB (some sources say up to ~8 TB under certain conditions) download.discomp.cz +2 surveillance-video.com +2 Network, Interfaces & PoE PoE ports: 4 ports, with per-port power up to 30 W maximum, total PoE power budget ~54 W for all ports combined download.discomp.cz +2 Uniview +2 Supported standards: IEEE 802.3af & IEEE 802.3at for PoE download.discomp.cz +1 Network interface: 1 × RJ-45 (10/100 Mbps) for NVR itself, plus the PoE Ethernet ports for cameras Uniview +1 Audio / Alarm / Smart Features Audio output: 1 RCA channel Uniview +2 Network Camera Store +2 Audio compression: G.711A / G.711U Uniview +1 Smart / VCA (Video Content Analysis) features: support for camera-side detection such as intrusion detection, cross-line detection, enter/leave area, audio detection, etc.; Behavior search & VCA search via cameras download.discomp.cz +2 surveillance-video.com +2 General / Physical Power supply: 48V DC (for PoE power, etc.) Uniview +1 Power consumption (without HDD): ≤ 9 W download.discomp.cz +1 Operating temperature: –10°C to +55°C Uniview +1 Operating humidity: ≤ 90% RH, non-condensing Uniview +1 Dimensions: 260 × 240 × 46 mm (about 10.2″ × 9.4″ × 1.8″) Uniview +1 Weight (without HDD): ≤ 1.1 kg

SAR 288.00

SKU: GS20250994
