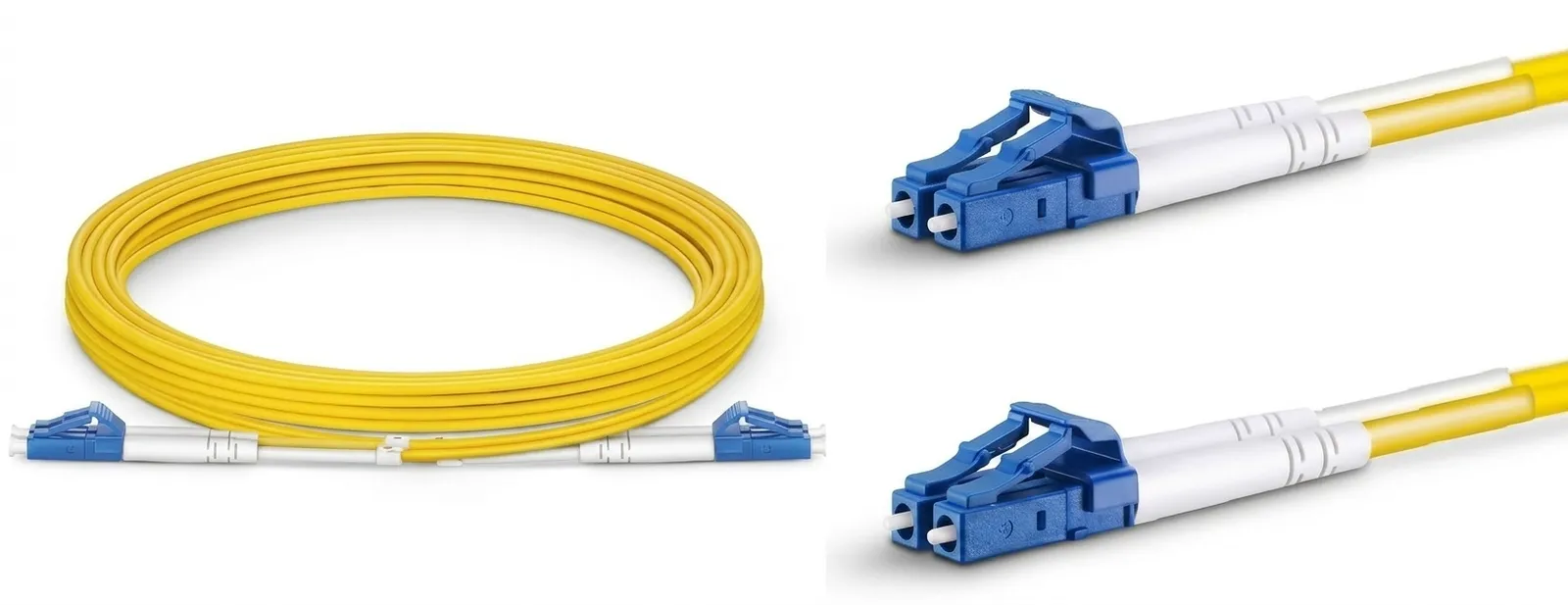

LC/UPC LC/UPC SM (G652D) DX LSZH 2.0MM PATCH CORD YEL-20MTR-INFAST

Connector Types & Polish • LC/UPC: Both ends of the cable use LC (Lucent Connector) connectors. They are small-form-factor connectors that snap into place using a retaining tab. [1, 2, 3, 4, 5] • UPC (Ultra Physical Contact): Refers to the specific blue-colored polish on the connector ferrule. It ensures low return loss (back-reflection) and optimized signal transmission. Fiber Type & Mode • SM (Single-Mode): Designed to carry a single ray of light over long distances with minimal signal loss. • G652D: This is the standard, industry-standard single-mode fiber type. It is optimized for zero dispersion at 1310 nm wavelengths and is water-peak suppressed, meaning it can operate efficiently across the entire 1260 nm to 1625 nm spectrum. Physical Configuration • DX (Duplex): The cable consists of two fiber strands bound together, allowing for simultaneous, two-way (transmit and receive) data traffic. • LSZH (Low Smoke Zero Halogen): The material composition of the outer jacket. In the event of a fire, LSZH jackets produce very limited smoke and no toxic halogen gases, making them a strict safety requirement for indoor installations and poorly ventilated areas. • 2.0MM: The outer diameter of each individual fiber cable within the duplex jacket. • YEL (Yellow): The industry-standard jacket color code designated for single-mode fiber optics. • 20MTR: The total length of the cable is 20 meters (approximately 65.6 feet)

SAR 48.00

SKU: GS2607000043
