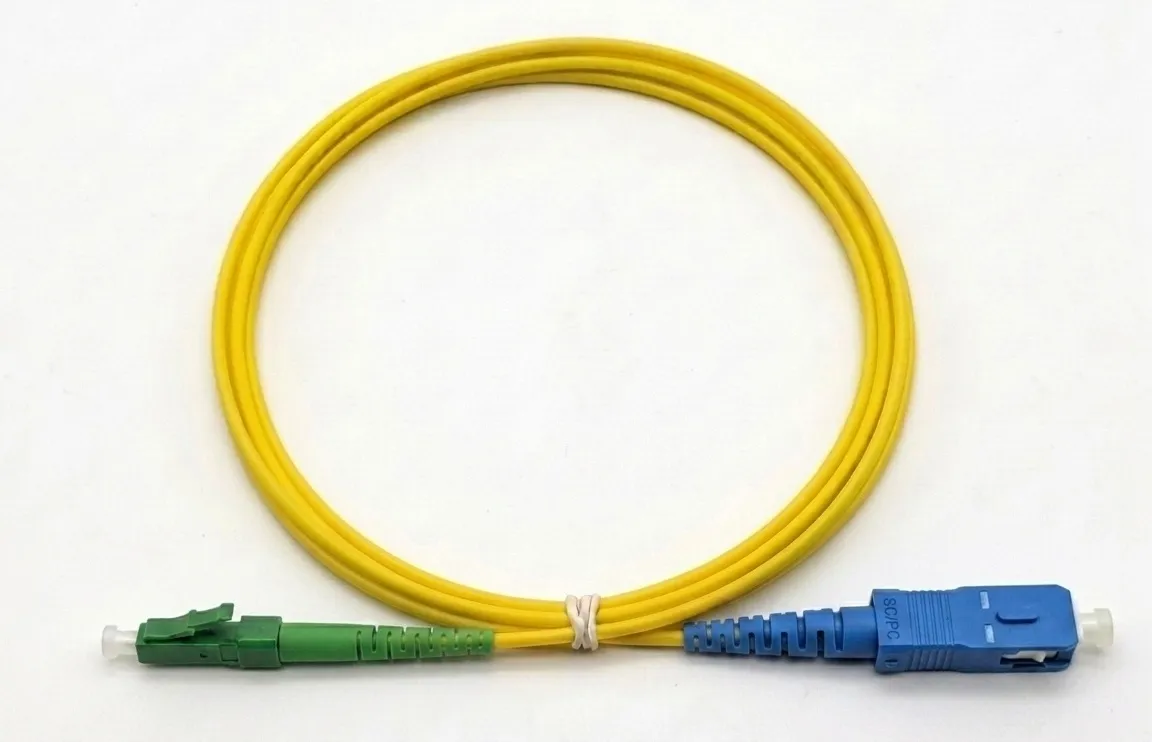

LC/APC SC/PC SM SX LSZH (G657A2) 2.0MM PATCH CORD YEL- 1MTR - INFAST

Cable Specifications • Connector Type A: LC/APC (Lucent Connector / Angled Physical Contact - Green connector, 8-degree angle to minimize back reflection). • Connector Type B: SC/PC (Subscriber Connector / Physical Contact - Blue connector, flat polished end-face). • Fiber Mode: SM (Single-mode, 9/125 micron core/cladding diameter). • Strand Count: SX (Simplex - one single fiber strand for one-way data transfer or bi-directional transceivers). • Sheath Material: LSZH (Low Smoke Zero Halogen - emits limited smoke and no toxic halogens when exposed to high heat). • Fiber Standard: G657A2 (Bend-insensitive single-mode fiber with a minimum bend radius of 7.5mm, fully compatible with G652D). • Cable Diameter: 2.0mm jacket thickness. • Jacket Color: YEL (Yellow - the standard color code for single-mode fiber). • Length: 1MTR (1 meter / 3.28 feet) Performance Metrics • Insertion Loss (LC/APC): ≤ 0.25 dB (Typical) / ≤ 0.30 dB (Maximum). • Insertion Loss (SC/PC): ≤ 0.20 dB (Typical) / ≤ 0.30 dB (Maximum). • Return Loss (LC/APC): ≥ 60 dB to 65 dB (Due to the angled polish). • Return Loss (SC/PC): ≥ 50 dB. • Operating Temperature: -20°C to +70°C. • Storage Temperature: -40°C to +80°C.

SAR 9.00

SKU: GS2607000039
