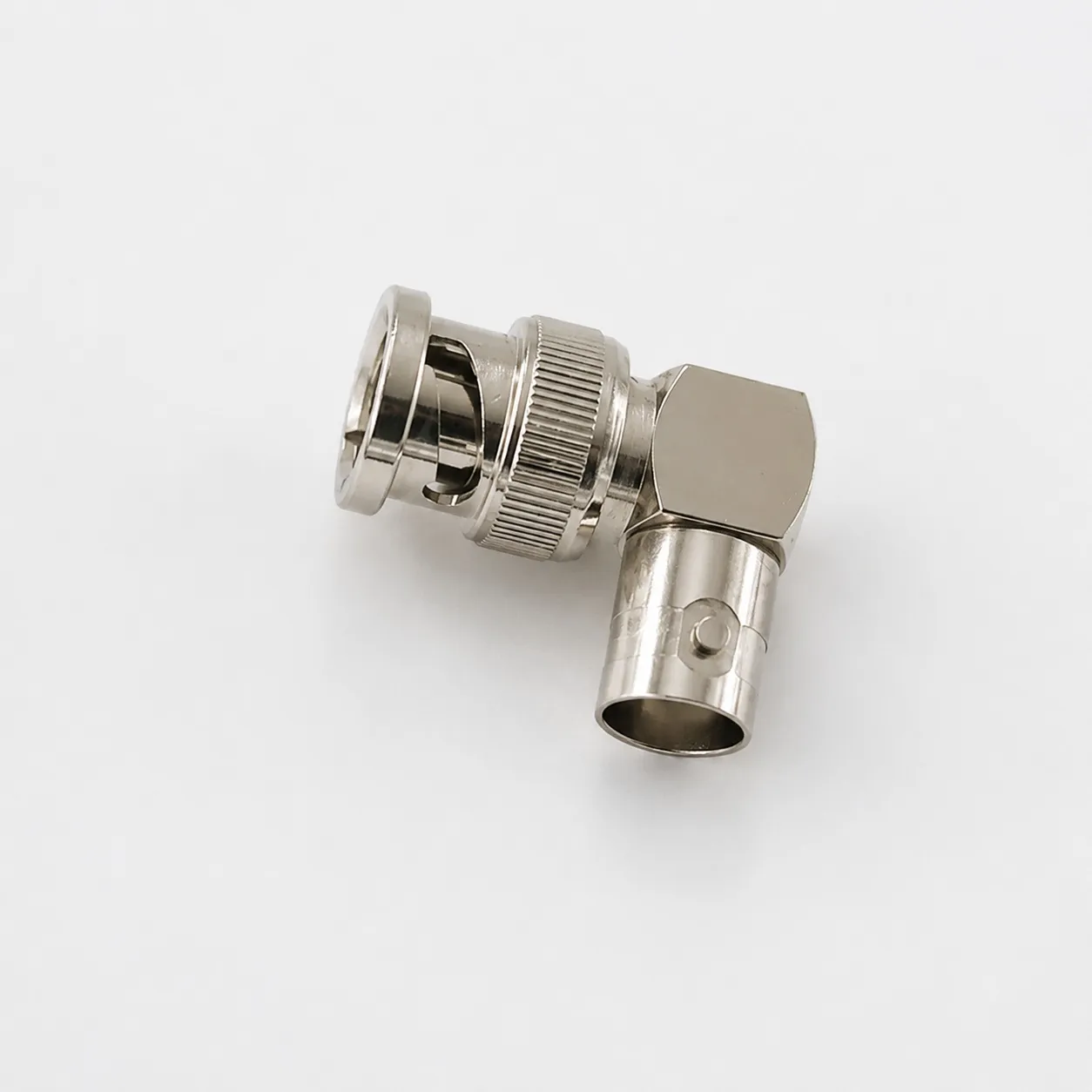

BNC Male to BNC Female Right Angle Connector Adapter

Typical Specifications Specification Details Connector Type BNC Male to BNC Female Adapter Style Right Angle / 90 Degree Impedance 50 Ohm (common) Frequency Range DC to 4 GHz VSWR < 1.3:1 Insertion Loss < 0.2 dB @ 3 GHz Body Material Brass Plating Nickel-plated body Contact Material Beryllium Copper Contact Plating Gold or Silver Insulator PTFE Mounting Style Plug-in inline adapter Temperature Range -55°C to +155°C Durability 500+ mating cycles Signal Support RF, CCTV, SDI, Video, Antenna Compliance MIL-C-39012 / IEC 60169-8 The right-angle design helps avoid sharp cable bends and reduces stress on BNC ports in tight spaces. Many models support SDI video transmission and RF frequencies up to 4 GHz. Common Applications • CCTV camera systems • SDI / HD-SDI / 6G-SDI video • RF antenna connections • Oscilloscopes & test equipment • Broadcast and studio systems • Telecom and networking equipment

SAR 25.00

SKU: GS2605000013
