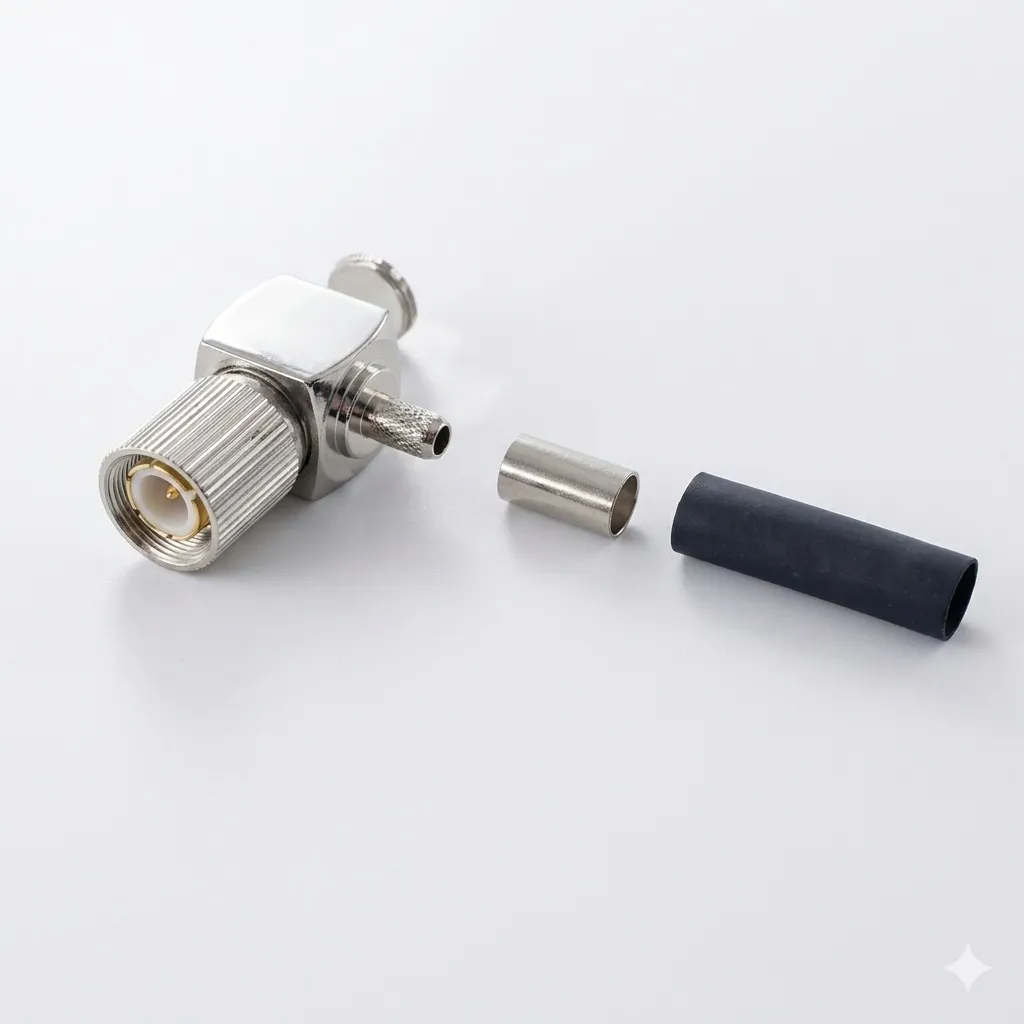

1.6/5.6 Male Right Angle Crimp BNC Connector For 02YS(St)CY 0.45/2.0 Cable

Electrical Specifications • Characteristic Impedance: 75 Ω nominal. • Frequency Range: DC to 1 GHz (standard), with some professional models supporting up to 3 GHz. • Dielectric Withstanding Voltage: ≥ 1000 V R.M.S. at sea level. • Contact Resistance: Inner contact ≤ 4 mΩ; Outer contact ≤ 2 mΩ. • Insulation Resistance: ≥ 10 GΩ minimum. Mechanical & Material Properties • Coupling Mechanism: Available in several types, including screw-on (threaded), snap-on (push-pull), or slide-on. • Termination: Crimp-style outer attachment for the cable braid. • Body & Nut Material: Typically nickel-plated brass. • Center Contact: Gold-plated brass or beryllium copper for enhanced conductivity. • Insulator: PTFE (Teflon). • Operating Temperature: −40° C to +85° C (standard), with some high-temp versions reaching +155° C. Cable Compatibility: 02YS(St)CY 0.45/2.0 This connector is precisely sized for these cable dimensions: • Inner Conductor Diameter: 0.45 mm. • Insulation (Dielectric) Diameter: 1.95 mm Foam-PE. • Overall Outer Diameter: Approximately 3.2 mm to 3.4

SAR 23.00

SKU: GS2605000011
