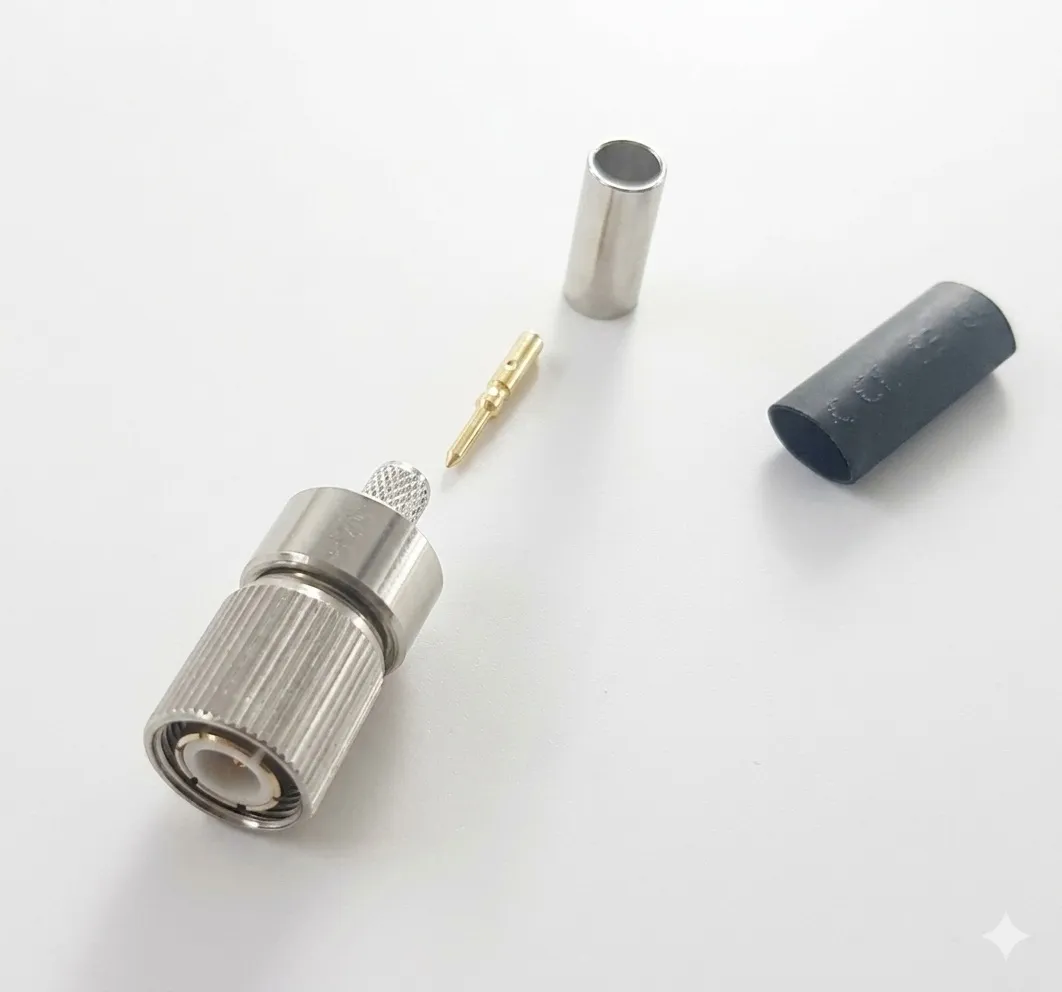

1.6/5.6 Male Crimp BNC Connector For 02YS(St)CY 0.45/2.0 2 Cable

Connector Specifications (1.6/5.6 L9) • Impedance: 75 Ω (optimized for video/telecom). • Frequency Range: DC to 1 GHz. • Coupling Mechanisms: Available in screw (for vibration resistance), snap-on (push-pull), or slide-on (rack/panel) versions. • Termination: Crimp-style, which simplifies field assembly and provides high-vibration stability. • Compliance: Meets international standards including IEC 60169-13 and DIN 47295. Cable Compatibility: 02YS(St)CY 0.45/2.0 This specific coaxial cable is a standard for switchboard and SDH (Synchronous Digital Hierarchy) applications. • Inner Conductor: 0.45 mm (often silver-plated or tinned copper). • Insulation (Dielectric): 1.95 mm Foam-PE. • Outer Diameter (Sheath): Approximately 3.2 mm to 3.4

SAR 23.00

SKU: GS2605000010
